Easily get motion control up and over a subject
Extend infinitely
Precision presets and keyframe automation
Simplified rigging for complex camera movements
See the possibilities
Make your camera Go →
Maximize motion control
Underneath the hood of the Conductor Sa2.6 is a first of its kind array of processors that can seamlessly control pan / tilt / roll / focus / zoom / monorail, all at the same time. But just because something moves doesn't mean that it moves well.
The magic is in the software. eMotimo has dedicated years to building algorithms that make the moves seamless and are easy for the end user to implement.
Details
Description

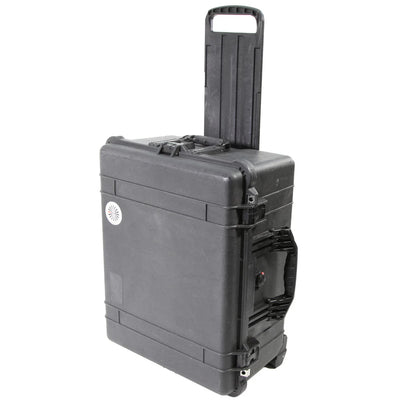

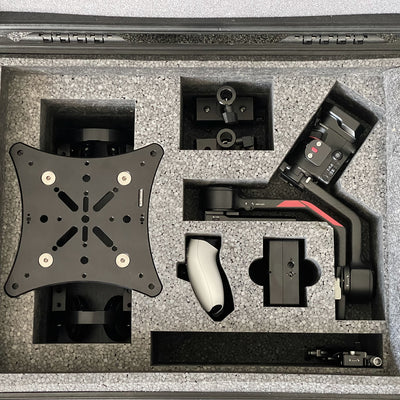

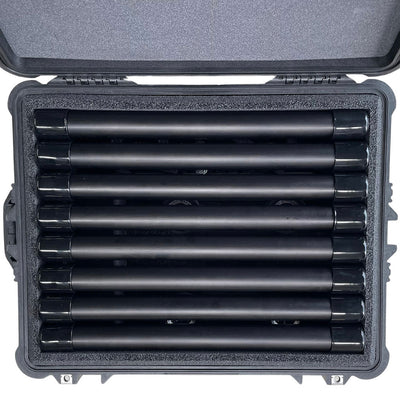

Custom Pelican 1610 will be available early 2025. This will hold all of the parts of the standard kit. If space permits we will include a cutout for the RS4 also.
Use Monorail Conductor for
Help us add to this list! How do you think Monorail Conductor can be used? Send us an Email
-Overhead shots
-Food prep
-Live events
-House of worship broadcasts
-Automated interview
-Mounted on a wall
-Bus/airplane interior
-Long tracking shots with the system supported from a drop-ceiling
-Supporting camera checkout charts
-Unboxing / product assembly videos
-Casino/Gaming shots
-Studio installations
-Product shots
-Medical overhead
Control Options
1) Direct Control using Gaming Controller. This is the best place to start for simplicity and speed. Power up the Conductor, connect the remote, and follow the prompts on the screen. The range of the controller is about 20-60 feet based on your environment. If you are using a battery and a wireless transmitter for your camera, this solution does not need to have wires attached so it's easy to rig.
2) Over Network with Bitfocus Companion - Plug into eMotimo Conductor’s wired Network Port. From anywhere on your network you can control the Monorail + Conductor with prebuilt Bitfocus Companion configurations on Stream Deck controllers.
3) Over Network with Skaarhoj PTZ controllers –Plug into eMotimo Conductor’s wired Network Port. From anywhere on your network you can control the Monorail + Conductor with PTZ controller from Skaarhoj
What's included / needed
Included from RigWheels.
-Monorail carriage customized for Conductor integration.
-8 pieces of 19" PortaRail (12.6') with connectors and end-caps.
-2 pipe clamps with light stand adapters
-eMotimo Monorail Conductor intrgration kit
Other items needed.
-DJI RS2, RS3, RS4 gimbal
-Camera compatible with gimbal
-Power base for the gimbal
-Power source with d-tap distribution
-Nucleus M or DJI focus/zoom motors as needed (only one DJI motor can be controlled through the Ronin. If both focus and zoom are needed Nucleus M motors would be required)
-Image transmission as needed
Hang - Mount - Extend
With Monorail + Conductor you can implement motion control in new ways and in new places.
Intuitive user interface
Getting up to speed on motion control systems can be intimidating. eMotimo has spent countless hours and done a great job making the most common shots easy to set up and execute. See more about the controller here.
Beyond portable
Camera Motion control doesn't have to be big, heavy and cumbersome. With Monorail + Conductor you can easily fit 40+ feet of motion control in the back of a sedan.
Also integrates with Passport / RailDolly
The eMotimo Conductor also integrates seamlessly with the Passport and RailDolly for a beltless motion control speed-rail slider. Easily implement both solutions using the same components.
FAQs
Can I use _____ gimbal with this?
You can use the Monorail Conductor independently as a "smart" linear solution but you would need to control non supported gimbals separately.
The eMotimo controller currently supports communication with Ronin RS2, RS3, RS4 gimbals.
If your RS2,3,4 Pro gimbal has the expansion port to take the DJI Focus Knob, you are set. If it can't, it doesn't have the correct connection to enable the Conductor to communicate with it.
See photo here.
Can I use _____ camera with this?
You can use any camera/lens combination that the above gimbals support.
Can I move _____ with this?
You can use this solution as a programmable linear system to move anything so long as the load is relatively centered underneath the carriage.
Can I connect this to a network.
The Conductor SA2.6 has a several ways you can communicate with it. One of the most powerful, extendable and reliable ways is through its wired network port.
The Conductor has a 10/100 Network Connection that can be configured in many ways. The most common is to plug it into a wired network to obtain an IP address from your router (Dynamic or Static) and serve as a TCP Server to reply to commands issues to it. Typically This enables communication from anything on the network that can see that IP address.
Once on the network, eMotimo can talk to Bitfocus Companion (prebuilt configurations) , Skaarhoj Controllers (prebuilt configurations), Dragonframe, and our open and published eMotimo API for those that want to incorporate control into other applications. Unlike inexpensive devices that rely solely on spotty and variable latency wireless communication, the Conductor's wired network port gives reliable, low latent performance over long distances for production environments for short and long terms installations.
Conductor also has an onboard Wifi receiver that may be turned on to enable faster run and gun setups, but at this time only the wired connection is fully supported.
What is the weight capacity?
Because "hangers" can be placed in-between sections of PortaRail, the Monorail system can be setup to support heavy loads. The limitation for weight comes from the compatible gimbals. The RS4 Pro supports a payload of 10 pounds.
How far can I extend the rails?
Using the hangers, you can extend the PortaRail as long as needed. Without support you can expect a useable span of about 20' with an acceptable amount of flex in the rail.
Does this work with PTZ cameras?
You can use the Monorail Conductor as a "transport" for a PTZ system but you would not have the smart coordination of pan/tilt/zoom/focus/slide coming from one controller. The PTZ and slide would be controlled independently.
Can I integrate this with my PTZ system.
Yes! With the camera/lens options available from major manufacturers there is certainly a way to get a Monorail + Conductor system integrated into your current PTZ workflow.
Can you help me implement this?
We have installation partners in some locations who are up-to-speed on integrating Monorail +Conductor in networked environments.
Who do I contact for support?
Submit hardware related questions to RigWheels. For Conductor related questions you can visit eMotimo support here.
